Product Selection
VLN Systems and Specifications
Compare the available Vita Load Navigator configurations, related lifting systems and operator-control hardware. Final equipment selection remains subject to load characteristics, rigging, crane capacity and project-specific engineering review.
Use the selector below to review indicative configurations and engineering schematics.
System Selector
Review one system or configuration at a time.
Selection changes the product summary, schematic and product-page action below.
VLN-40T-7 — 2.1 m spreader beam selected.
Vita Load Navigator configuration

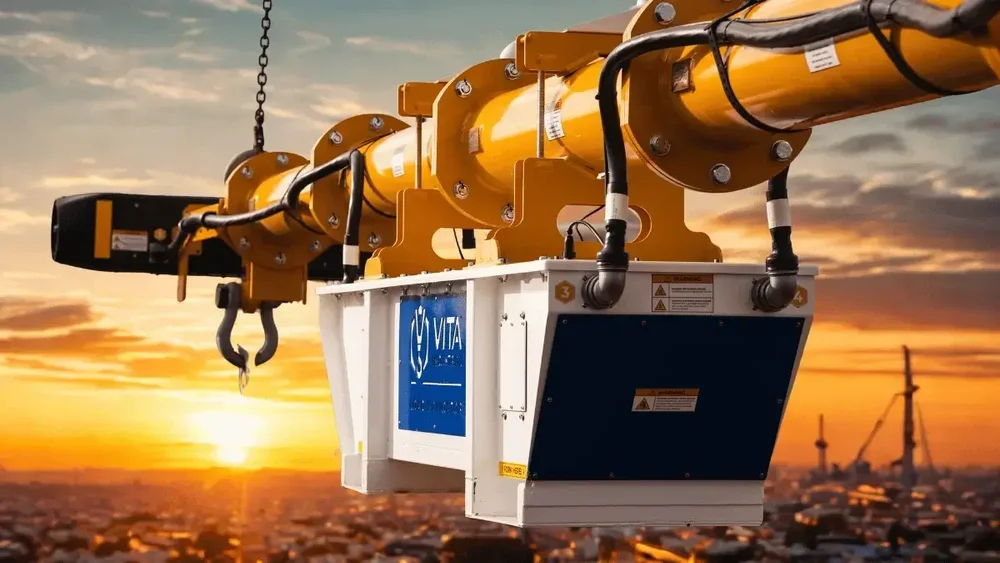

Vita Load Navigator 40T Series

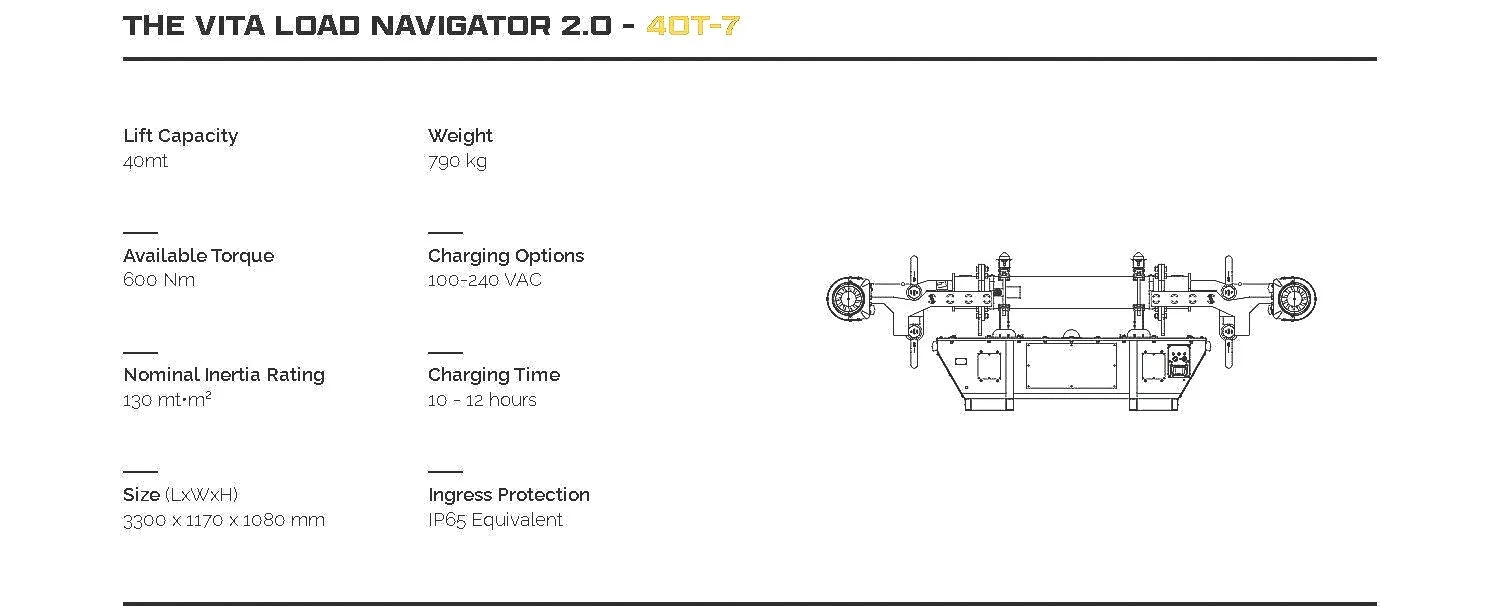

VLN-40T-7 — 2.1 m Spreader Beam
The VLN-40T-7 is one available VLN-40T arrangement for applications requiring the 2.1 m spreader-beam configuration. It provides remotely operated load-orientation and assisted stabilisation functions, subject to the approved lift plan and operating limits.
Key attributes
- VLN-40T series configuration
- 2.1 m spreader-beam arrangement
- Remotely controlled load orientation
- Assisted load stabilisation
- Selection subject to engineering and lift planning
Final suitability depends on the load, lifting points, rigging arrangement, crane configuration and operating conditions.
Engineering Reference
Configuration Schematic
Select the image to inspect the available schematic at a larger size.
Next Step
Review the Selected System
Continue to the relevant product page or contact Erne Lifting to discuss the proposed application.
Detailed technical information is available on request.

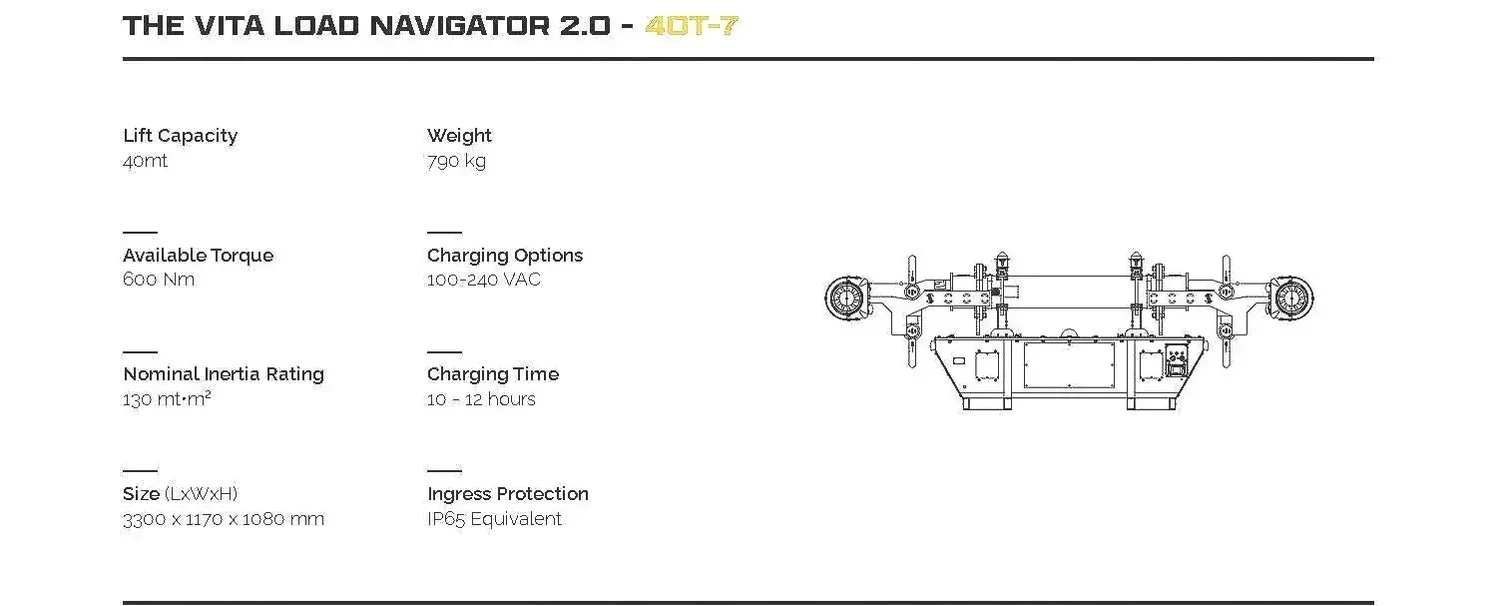

VLN-40T-7 — Expanded Schematic
